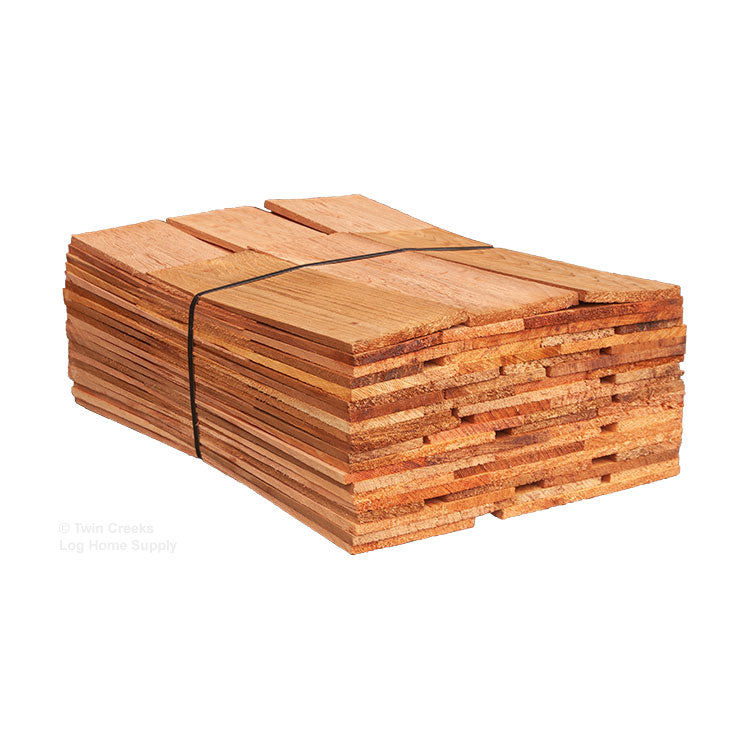

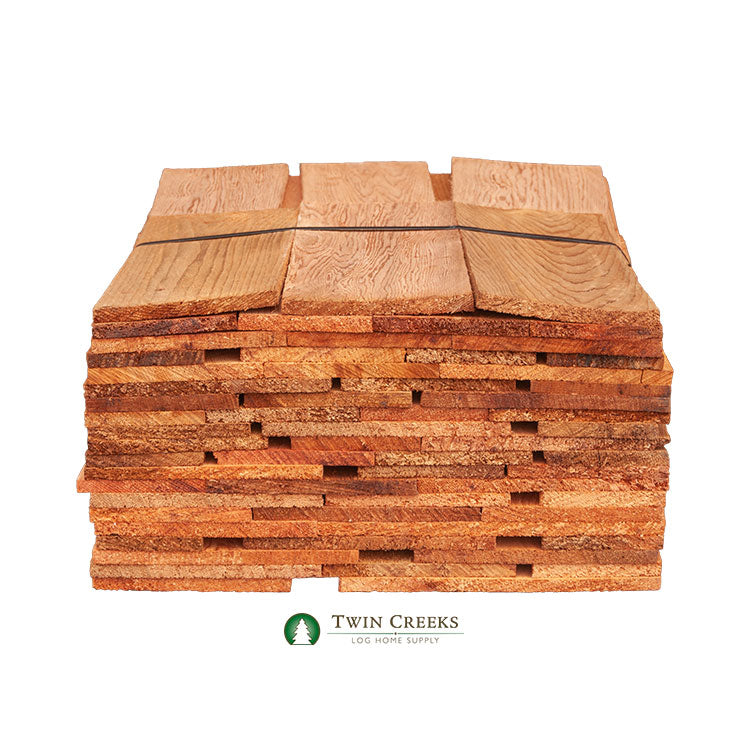

Bundle #2 Grade 18" Perfection Kiln-Dried Western Red Cedar Shingles

#2 Grade Red Label 18" Perfection Western Red Cedar Shingles. These Cedar Shingles are low maintenance and add beauty, texture, durability, and insulation to your home.
Please call for a custom shipping quote if you need 10 or more bundles.
SKU: 2PRCSSNA
$139.95
Typically ships in 1 business day
View details
Details

#2 Grade 18” Perfection Kiln-Dried Western Red Cedar Shingles add warmth, durability, and timeless charm to your home. While many plastic and composite products on the market attempt to duplicate the look of cedar siding, none match the beauty and distinctiveness of naturally grown cedar. Whether you choose to stain, paint, or allow them to weather naturally to a beautiful silver, real cedar shingles are a low maintenance product that adds texture, durability, insulation, and individuality to your home.

Features & Benefits of Western Red Cedar Shingles:
• Extreme Durability – Cedar Shingles easily withstand harsh weather conditions including heavy wind, rain, and hail.
• Longevity – Western Red Cedar is known as one of the most durable softwoods, and with proper maintenance, Cedar Shingles can beautify your home for decades.
• Energy Efficiency – Cedar offers excellent insulation for your home, keeping it warmer during cold months, while allowing your home to breathe and stay cooler during the warmer months, all while maintaining a low carbon footprint.
• Termite Resistance – Western Red Cedar wood is naturally resistant to termites.
• Ease of Installation – Great for Do-It-Yourself projects, Cedar Shingles are easy to install.
• Versatility – Western Red Cedar Shingles can be used with many different architectural styles, affording you the option of a home covered in beautiful Cedar wood, or simply a small rustic accent area on an otherwise traditional home.
• Quality Milling – We sell only the highest quality Cedar products.
• Adaptability – Cedar Shingles are manufactured to be used on both interior and exterior wall surfaces.

Product Specifications:
• Packaging: Standard roofing-style bundle secured with a metal strap.
• Length: 18" (Perfection)
• Grade: Number 2 Grade (Red Label). Limited sapwood and flat grain is allowed. Limited knots and defects are allowed above the clear portion.
• Drying: Kiln-Dried
• Texture: Sawn-Face Texture
• Thickness: 5/2-1/4" (5 shingle “butts” stacked together should measure 2 ¼” thick)
• Width: Width of shingles will vary, generally between 4" and 10".  The minimum width is 4 inches with a minus tolerance down to 3 inches in up to 20% of the bundle.
• Shipping Options: These bundles can be shipped via UPS within a cardboard box or can be palletized if shipped by a trucking method.

Coverage Rate Information:
Coverage Rates Chart

• Each bundle is sized to cover 25 square feet of wall if applied at a 5-1/2" shingle exposure. The chart above provides a conversion for coverage at different exposures.
• When using double coursing, this product has a maximum exposure of 10".
• When using Single coursing, this product has a maximum exposure of 7".

Single Coursing Vs. Double Coursing Application Methods:
• Using the single coursing application method, the shingles are installed with one layer of shingles per run.
• Using the double coursing method, two shingles are installed on top of each other on every layer. This method allows more of the face of each shingle to be exposed, providing more square footage of coverage from each box of shingles. Double exposure application also saves money on material and produces a more noticable shadow line.

Estimating Cedar Shingles:
1. Measure the amount of square footage you have to cover.
2. Using the chart above, identify the amount of coverage per box at your desired exposure.
3. Divide the square footage of coverage needed by the square footage per box value that you just selected from the chart.

Example: 500 square feet of wall needs to be covered using #2 Grade 18" Cedar Shingles. The highest level of exposure is desired, therefore the shingles should be installed as a double course with a 10" exposure. At a 10" exposure, each bundle of shingles should yield 45 square feet of coverage. So, divide the 500 square feet of wall coverage by the 45 square feet of coverage per bundle (500/45= 11.1 bundles). Since the calculation indicates that a partial bundle is required, round up to 12 bundles to ensure that enough shingles will be available to complete the job.

Product Resources:
Cedar Shake and Shingle Product Selection Guide
Cedar Shake and Shingle Specification Guide
Basics Guide for Cedar Shakes and Shingles
CSSB Exterior and Interior Wall Manual
CSSB New Roof Construction Manual

Specifications
More Information

Additional Technical Resources for 18” Perfection Western Red Cedar Shingles:
Guide to Certi-Grade 18" Perfection Shingles Grading Rules
USDA Guide to Installation, Care, and Maintenance of Wood Shingle Siding
Western Red Cedar Sidewall Finishes/Coatings Options

Application Notes:
• Good workmanship is crucial to the integrity of any sidewall system. Installers should read the CSSB Wall Manual carefully to ensure that they follow proper workmanship practices.
• Western Cedar shingles and shakes are applied on walls in a different manner than on roofs. The major point of difference is in permissible weather exposures; on walls the maximum weather exposure is greater than it is on roofs.
• A given area of wall will require less material than the same area of roof.

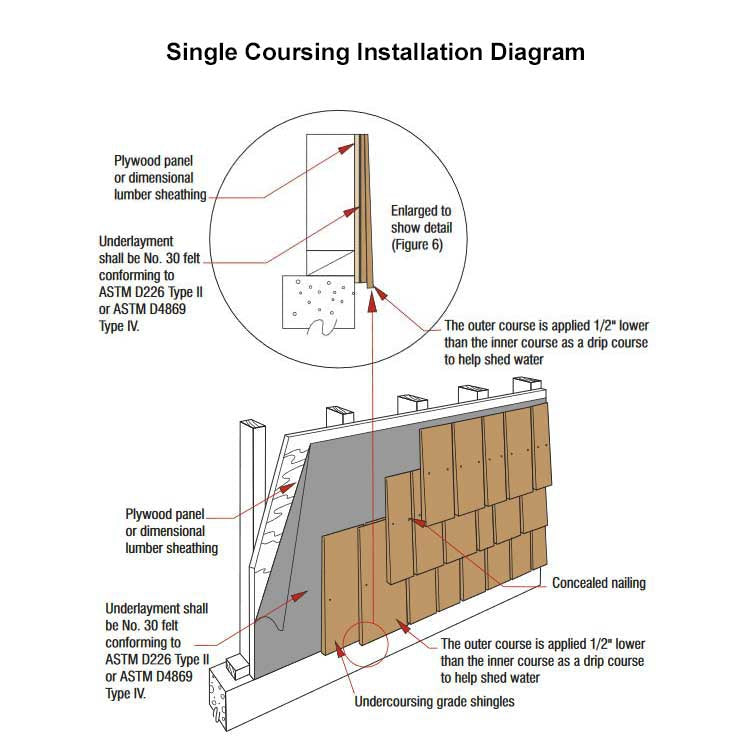

Single Coursing Western Cedar Shingle Installation:
1. Apply 15-30 lb. felt building paper over sheathing.
2. Double the first course at the base of the wall. Use dry low grade #3 or #4 shingles or other acceptable undercoursing for the starter course.
3. Space shingles slightly apart (1/8"-1/4") to allow for expansion and prevent possible buckling.
4. Offset joints 1 1/2" from adjacent corners.
5. Drive nails approximately 1 inch above butt line of succeeding course of concealed nailing.
6. For shingles up to 8" wide, two nails in each shingle are placed 3/4" from each edge. For wider shingles, a third nail should be driven into the center.
7. Use only 1 1/4"-1 1/2" hot dipped zinc or aluminum nails only.

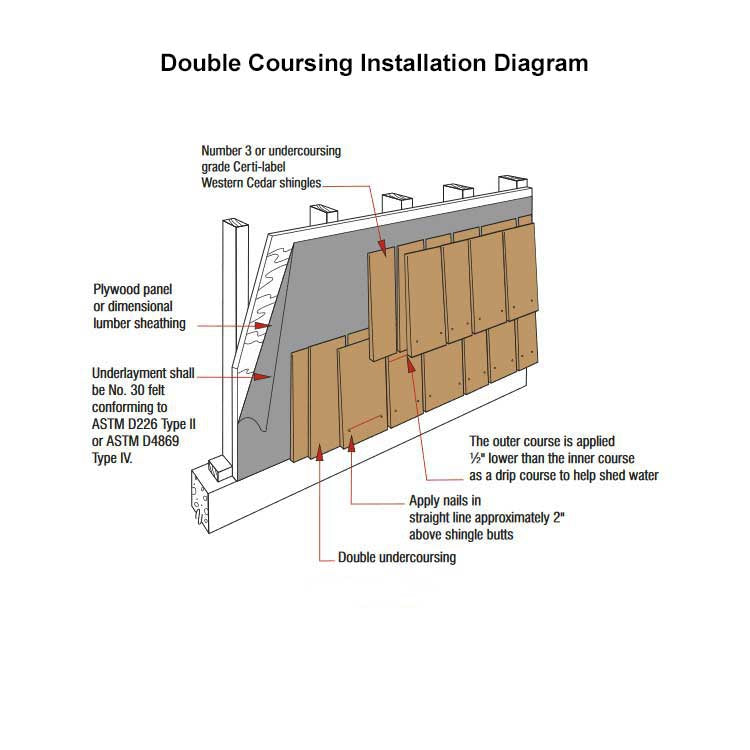

Double Coursing Western Cedar Shingle Installation:
1. Follow the same direction with the following exceptions.
2. Two layers of dry undercoursing recommended for the starter course, then the outer course
3. Each succeeding course requires dry undercoursing to be applied before the outer course is applied. Outer courses should be applied 1 inch lower than the undercoursing.
4. Face Nail the outer course shingles with two casing-type nails (as in #7 above), driven about 2 inches above the butt line, 3/4" from each edge plus additional nails every 4 inches for wider shingles (as in #6 above).

Finishing Western Cedar Shingles at Corners
1. Outside corners can be finished by lacing, butting against corner boards or mitered.
2. Inside corners are finished by butting shingles against a square wood strip on the inside corner.
**Note: Install the best face facing outward.**

Finishing Cedar Shingles:
•  Use oil-based stains only. To hasten the weathering process, apply a bleaching oil finish.
• Generally finish products immediately after installation providing that the moisture content is appropriate for both the finish product being used and your locale. If the finish is not applied promptly, adhesion can be compromised (unless additional surface preparation is undertaken).
• If you have installed a natural product (unfinished), apply your finish before rain and other moisture are absorbed.  Ensure that you account for high humidity concerns.
• In all instances drying time varies from region to region. Excessive moisture will limit finish adhesion.
• If you clean the surface prior to finishing, ensure that it is allowed to dry to the finish manufacturer's recommended moisture content level before applying a new finish.

Nails:
• Each Western Cedar shingle should be applied with two fasteners.
• Nails must be stainless steel Type 316 in locations within fifteen (15) miles of salt water.
• For locations outside the salt water zone - nails must be stainless steel Type 304, Type 316, or hot-dipped zinc coated galvanized conforming to a coating weight of ASTM A 153 Class D (1.0 oz/ft2).
• Stainless steel nails, although more expensive, offer the highest degree of corrosion resistance.
• Minimum nail lengths are shown in the fastener chart located in the CSSB Wall Manual.
• In double course applications, the exposed Western Cedar shingle should be face-nailed with two nails (as above), driven 2" above the butt line, and 3/4" from each edge.
• Western Cedar shingles wider than 10" require 2 additional nails. Drive these two nails approximately 1" apart near the center of the shingle.
**Please Note: some nail manufacturers offer nails specifically for wood shake or shingle sidewall application.

Staples:
• If you choose to use staples they must be stainless steel Type 316 in locations within fifteen (15) miles of salt water.
• For locations outside of the salt water zone, stainless steel staples Type 304 or Type 316 must be used.
• Two staples should be driven per shingle with the staple crowns 7/16" minimum horizontal, maximum 3/4" horizontal, to the shingle butt.
• Staples are driven in the same location as nails relative to the sides and overlapping butt line.
• Shingles wider than 10" require 2 additional staples driven approximately 1" apart near the center of the shingle.
• Fasteners should be long enough to penetrate into the sheathing at least 3/4" or all the way through, and driven flush with the surface of the shingle.
• In all applications, staples should be concealed by the course above.
• DO NOT USE ELECTRO-GALVANIZED (EG) FASTENERS.
• Nails are preferred for aesthetic reasons in sidewall applications using exposed fasteners.
Reviews
Product Questions

Product Questions

  • How many running feet does this cover?

    Bundles of Cedar Shingles will cover different amounts of wall square footage depending on the exposure (how much of the butt end of the shingle you show).  With 18" long shingles, carpenters will generally install them with the exposed ends somewhere between 5" and 10" long.

    CSSB, the grading organization for cedar shingles, provides a helpful chart showing how much square footage yield you can expect at different exposures:

    You can see here that you can expect 32 square feet of coverage per bundle if you choose 7" of exposed end.

    Since you mentioned running feet in your question, it's also helpful to know that CSSB requires that #2 grade shingles have greater than 635 inches of “on grade” shingles per bundle to meet grade.

  • What is indicated with "Perfection" in the name?

    Perfection just indicates that the shingle is 18" long. Other cedar shingle sizes have similar nicknames: 16" shingles are also referred to as "Fivex" shingles and 24" shingles are also referred to as "Royals".
